Description
1. PRODUCT DESCRIPTION
| Item | Description |
|---|---|
| Model | UBI 1450 Catamaran Ferry |
| Intended Use | High-Frequency Commuter Route, Urban Water Transport |

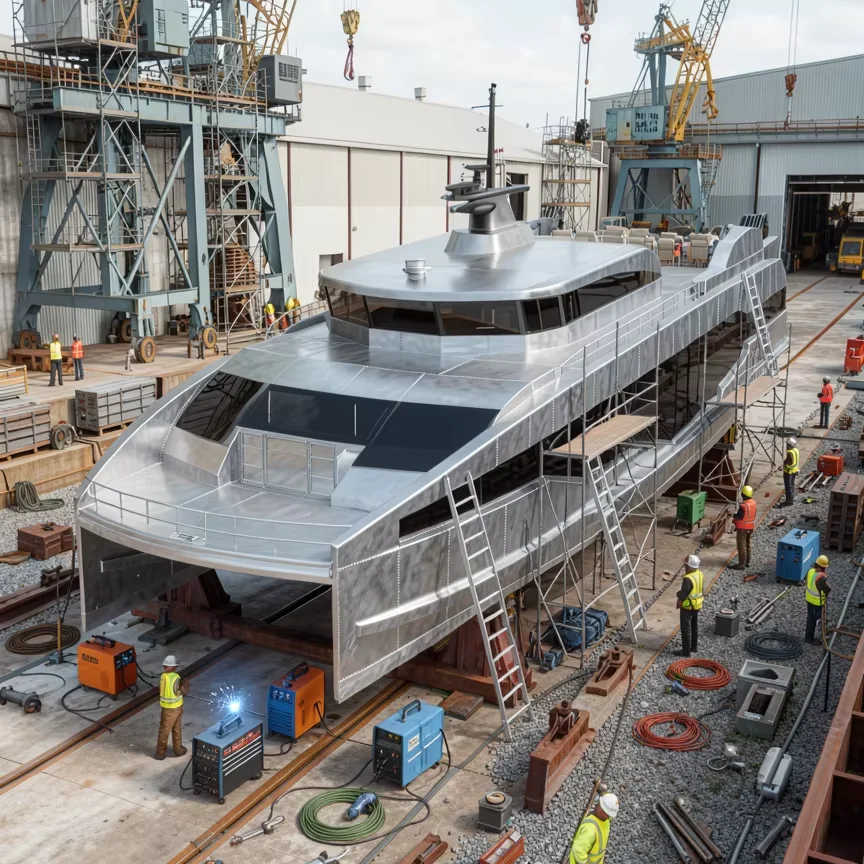

| Hull Material | Marine-Grade Aluminum (5083/H116) |
| Superstructure | Aluminum & Fiberglass Composite |
| Classification | Designed to comply with local maritime authority standards for vessels up to 50 passengers |
2. TECHNICAL SPECIFICATIONS
| Category | Details |
|---|---|
| Length Overall (LOA) | 14.20 meters |
| Beam Overall | 5.20 meters |
| Draft (Fully Laden) | 0.75 meters |
| Dry Weight (Approx.) | 8,200 kg |
| Passenger Capacity | 50 Persons + 3 Crew |
| Fuel Capacity | 1,500 Liters |
| Fresh Water Capacity | 200 Liters |
| Max Speed (Fully Laden) | 25-28 knots |
| Cruising Speed | 22-24 knots |
| Propulsion | Option A: 2 x Yamaha F350 XB Outboard Motors (350 HP each) Option B: 2 x Suzuki DF350A XX Outboard Motors (350 HP each) |
| Recommended Power | 2 x 350 HP Outboard Motors (Total 700 HP) |
3. STANDARD EQUIPMENT & FEATURES
Hull & Deck: Heavy-duty diamond pattern anti-skid deck coating, stainless steel cleats (8x), fenders (8x), bow mooring bit, stainless steel safety rails throughout, four boarding gates (2 port, 2 starboard)
Passenger Cabin: Fully enclosed air-conditioned cabin with commercial-grade seating for 50 passengers in 2×2 configuration, overhead luggage racks, standing headroom throughout, multiple emergency exits

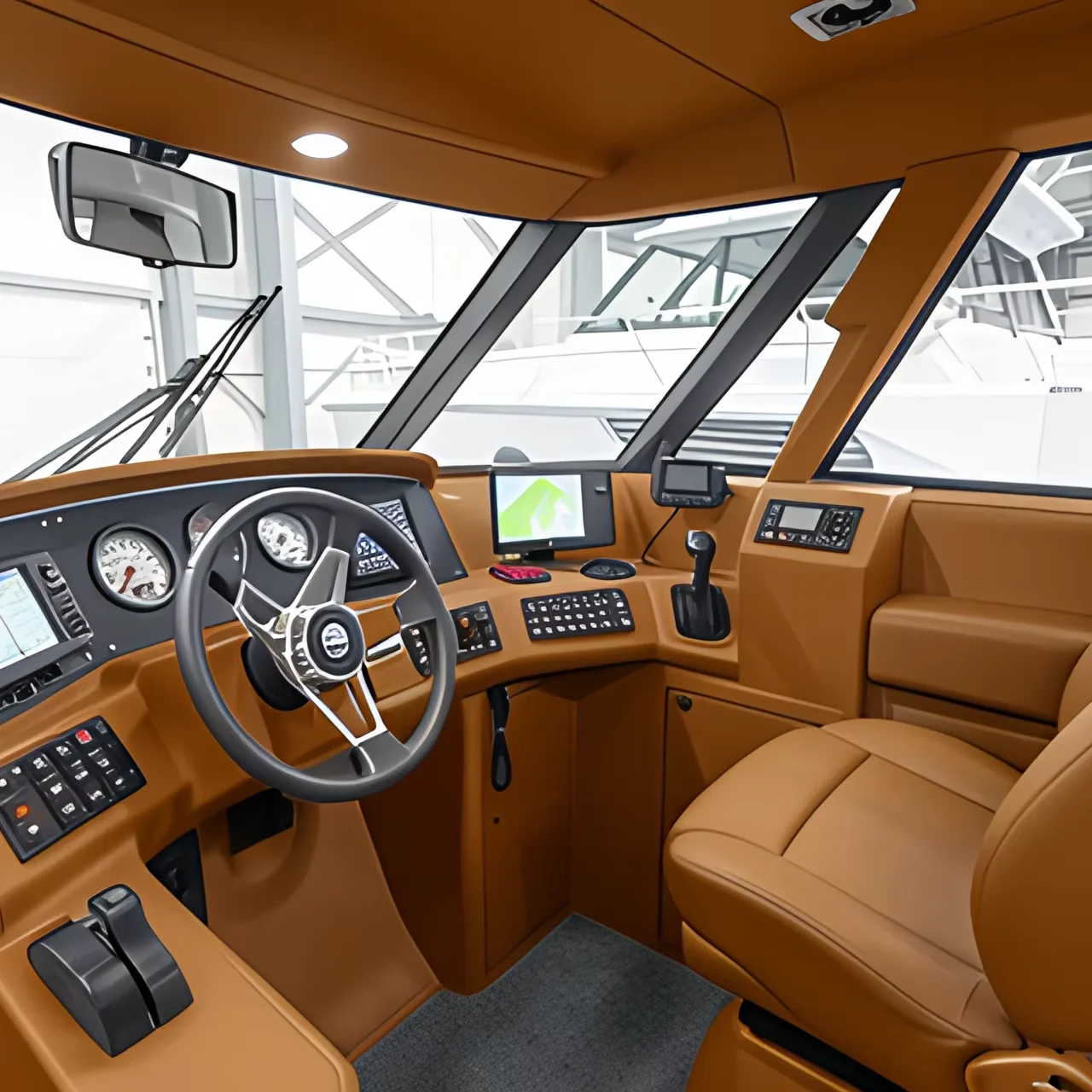

Navigation & Electronics: Fully equipped helm station with hydraulic steering, VHF Radio, 16″ GPS/Chartplotter/Sounder, Radar, Autopilot
Safety Equipment: 53 x Adult Life Jackets, 6 x Fire Extinguishers, Comprehensive First Aid Kit, Flares Kit, Electric Bilge Pumps (4x), Automatic Fire Suppression System, Emergency lighting system
Systems: 24V DC electrical system with dual battery banks and switch panel, LED navigation and interior lights, public address (PA) system, CCTV surveillance system, electronic ticketing system pre-wiring
4. FLOOR PLAN & IMAGES
(Note: This is a descriptive representation. Detailed CAD drawings and high-resolution images would be provided upon formal inquiry.)
Deck Layout:
Forward Cabin: Enclosed seating for 20 passengers with standing headroom
Main Cabin: Central seating for 30 passengers with multiple boarding points
Aft Area: Engine compartment and storage with full safety rail enclosure
Helm Station: Elevated center position for 360-degree visibility with dual seats
Boarding Arrangement: Four wide boarding gates for rapid passenger turnover
Visual Representation:

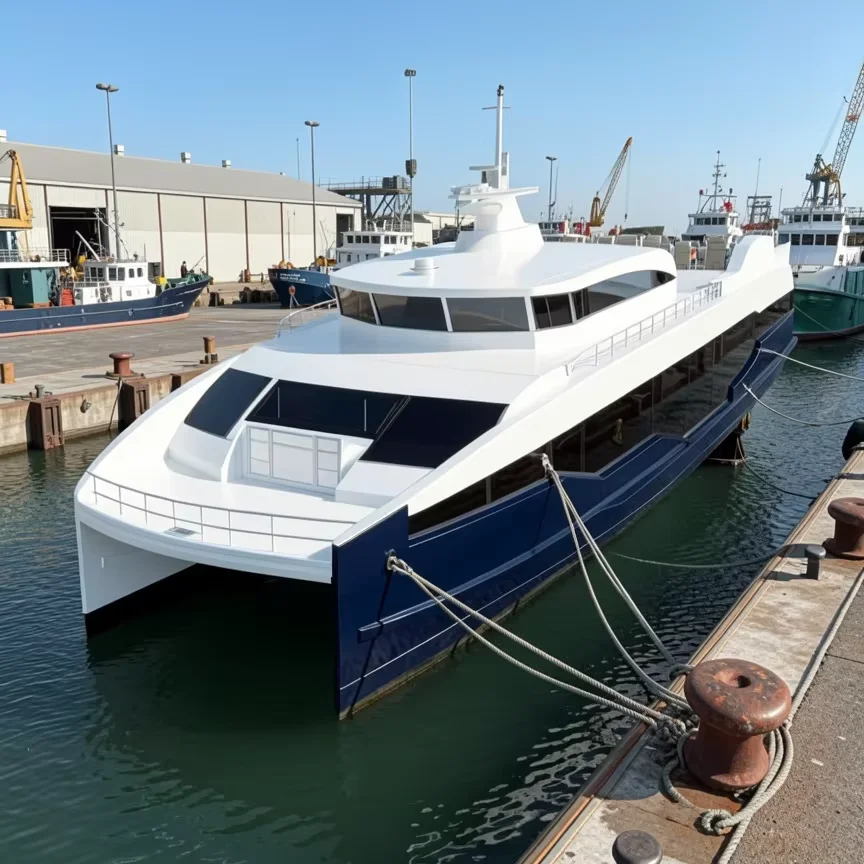

Outboard Profile: Robust, functional design optimized for high-frequency operations with multiple wide doors and large windows for passenger comfort and safety
Inboard View: Efficient cabin layout designed for quick boarding and alighting, with durable, easy-to-clean surfaces and optimized passenger flow management
