Description
Vessel Specification: “Voyager 30” High-Speed Water Taxi
Vessel Type: Fiberglass Passenger Transport / Water Taxi
Primary Use: Urban transit, island hopping, tourist transfers, charter service.
Certification: CE Category C (Optional) – for operation in coastal and bay areas.
1. Principal Dimensions & Weights
| Parameter | Value | Notes |
|---|---|---|
| Length Overall (excl. platform) | 9.18 m | ~30 ft |
| Length Overall (incl. platform) | ~9.70 m | Estimated, critical for docking |
| Beam (Moulded) | 2.65 m | Provides a stable, spacious passenger platform. |
| Net Weight (Lightship) | 1,400 kg | Lightweight fiberglass construction for enhanced performance and fuel efficiency. |
| Maximum Passengers | 27 + 1 Crew | High-density seating capacity for efficient operations. |
2. Performance & Propulsion
| Parameter | Value | Notes |
|---|---|---|
| Hull Material | Hand-laid Fiberglass | Durable, low-maintenance, and corrosion-resistant. |
| Recommended Engine Power | 1 x 150-300 HP or 2 x 100-200 HP | Twin-engine configuration is recommended for redundancy, safety, and superior maneuverability. |
| Maximum Speed Range | 30 – 45+ knots | Performance is directly tied to engine power and passenger load. |
| Cruising Speed (Typical) | ~28-35 knots | Optimal for passenger comfort and fuel economy during transit. |
| Fuel Capacity | 300 L | Integrated tank with gauge. Provides excellent range for daily operations. |
3. Key Features & Design

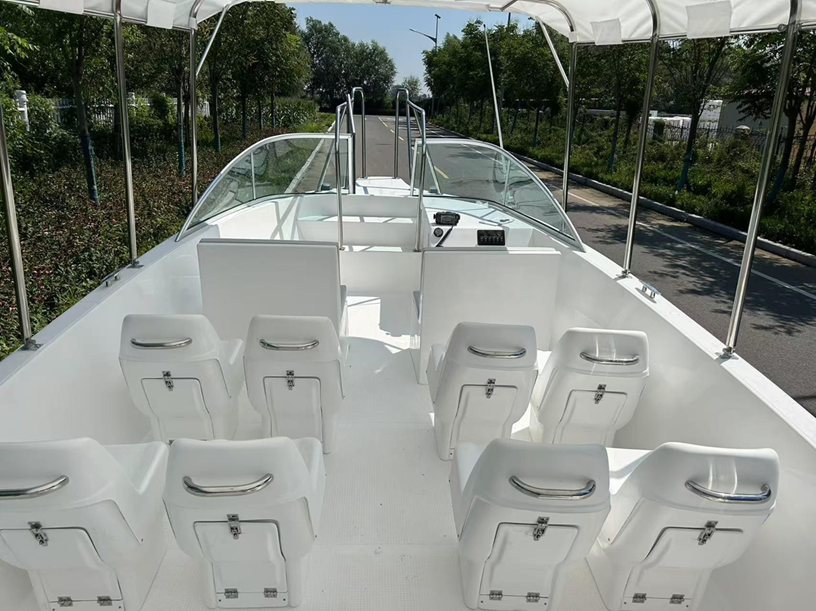

- Panoramic Windscreen: Offers the operator excellent visibility and provides passengers with an unobstructed view, enhancing the experience.
- Canopy Options:
- Soft Canopy (Standard): Lightweight fabric canopy on a stainless steel frame for sun and rain protection.
- Fiberglass Canopy (Optional): Rigid, permanent structure offering superior weather protection, durability, and a more finished appearance.

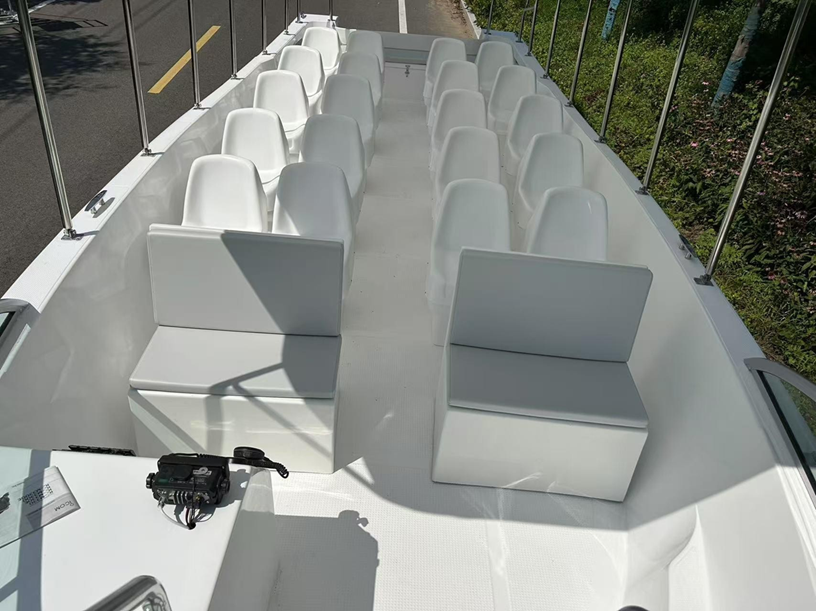

- Passenger-Focused Layout: Designed for efficient embarkation/disembarkation and comfortable, secure seating for 27 passengers.
- Twin Swim Platform at Stern: Provides versatile utility for water access, safety, and a clean, functional stern line.
4. Standard Equipment
- Safety & Operational:
- Automatic Bilge Pump
- Navigation Lights (Compliant)
- Control Panel and Switches
- Hardware & Finish:
- Stainless Steel Safety Rails
- Stainless Steel Support Frame for Canopy
- Fuel Tank with Gauge
Summary of Key Characteristics
- High Passenger Capacity: One of the highest capacity-to-size ratios in its class, maximizing revenue potential per trip.
- Excellent Performance: A lightweight fiberglass hull ensures fast transit times, crucial for taxi and timed tour services.
- Operational Flexibility: The choice between single or twin outboards and canopy types allows owners to tailor the vessel to their specific operational needs and budget.
- Low Maintenance: The combination of fiberglass construction and corrosion-resistant stainless steel hardware ensures reduced lifetime costs.
- Proven Design: The design is focused on the practical requirements of commercial passenger transport.
Disclaimer: Specifications are subject to change based on final configuration, engine selection, and optional equipment. Speeds are estimates and vary based on load, conditions, and engine setup.
