UBI 88 Customized Aluminum Fishing Speed Boat 8M 8 PAX OUTBOARD 35-40 Knots 115-300HP

Description

Product Technical Data Sheet

1. Product Identification

• Brand Name: Ubi
• Product Name: Catamaran 88
• Type: Catamaran Fishing/Sports Speed Boat
• Year Built: 2026
• Intended Application: Coastal & Inshore Sport Fishing, Day Cruising, High-Speed Water Transport.

2. General Specifications

• Overall Length (LOA): 8.0 meters / 7.9m (as packaged)
• Beam (Width): 2.46 meters
• Passenger Capacity: 8 persons (as per design, subject to local maritime regulations)
• Design Category: Likely Category C (Inshore – winds up to force 6 & waves up to 2m) or B (Coastal). Must be finalized with builder.
• Approximate Dry Weight: 2500 kg (Gross)

3. Hull & Structure

• Hull Configuration: Catamaran (Twin-Hull)
• Construction Material: Marine Grade Aluminum Alloy
• Specific Alloy & Standard: DNV GL (or equivalent) Certified 5083-H321 / H116. Excellent seawater corrosion resistance, high strength-to-weight ratio, and weldability.
• Hull Bottom Plate Thickness: 6 mm (Robust construction for impact resistance and durability).
• Deck & Superstructure: Marine Grade Aluminum (Thickness typically 4-5mm, to be specified).
• Advantages: Lightweight for performance, low maintenance (no rot, minimal osmosis risk), high structural integrity, and long lifespan.

4. Performance

• Maximum Speed Range: 35 – 40 Knots (Approx. 65 – 75 km/h). Highly dependent on engine power and final load.
• Cruising Speed: Estimated 25-30 Knots (for optimal fuel efficiency).
• Seakeeping: Catamaran design offers superior stability at rest and reduced rolling in beam seas compared to monohulls, ideal for fishing platforms.

5. Propulsion & Fuel System

• Fuel Type: Petrol / Gasoline
• Fuel Tank Capacity: 2 x 200 Liters (Total 400 Liters). Dual-tank system for weight distribution and optional fuel management.
• Engine Configuration: Twin Outboards Recommended. Typical power range: 2 x 115 HP to 2 x 200 HP to achieve target speed. Exact model and horsepower to be specified.
• Steering: Hydraulic steering system (standard for this performance class).

6. Key Features & Equipment (Typical Customization)

• Fishing Focus: Large, stable cockpit area, insulated fish well/bait tank, rod holders, prep station, and fresh/raw water washdown.
• Navigation: Console outfitted for multi-function display (chartplotter, sounder, radar), VHF radio, and controls.
• Deck Layout: Bow sun pad/seating, walk-around decks, T-top or hard top with canopy (common option for shade).
• Ancillary Systems: Bilge pumps, navigation lights, battery system with switch, freshwater system (optional).

7. Warranty & Certification

• Structural Hull Warranty: 5 Years (Typical for professional aluminum construction).
• Equipment Warranty: Varies by component manufacturer (engine, electronics, etc.).
• Certification: Can be built to comply with local/national marine standards upon request (e.g., CE, ABYC).

8. Packaging & Delivery

• Single Package Dimensions: 790 cm (L) x 245 cm (W) x 260 cm (H).
• Single Gross Weight: 2500.000 kg.
• Delivery Condition: Typically shipped semi-knocked down (SKD) or fully assembled on a cradle, ready for commissioning.

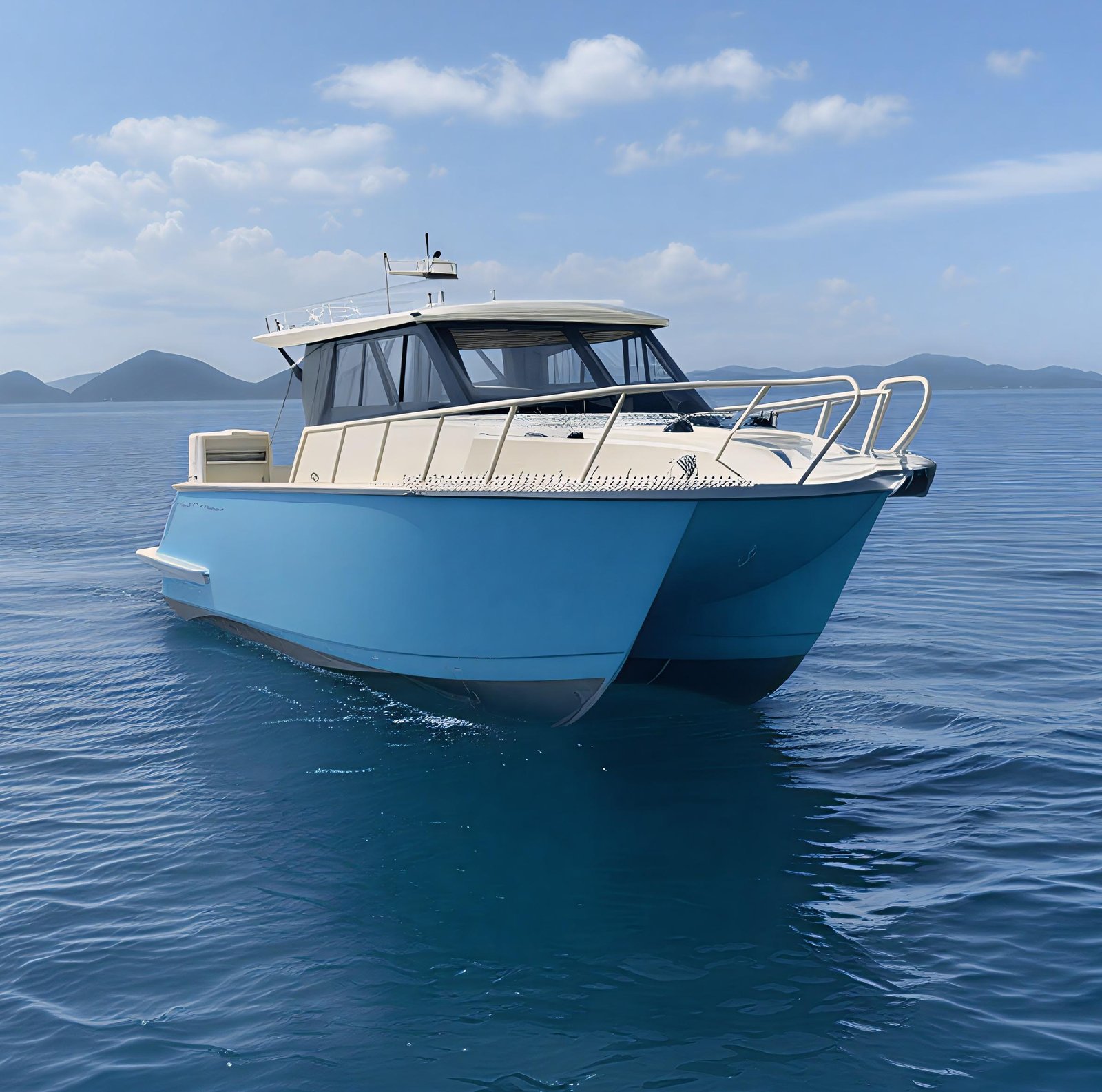

Product Description: Ubi Catamaran 88

The Ubi Catamaran 88 is a purpose-built, high-performance aluminum fishing speed boat designed for the discerning angler and boating enthusiast. Scheduled for a 2026 launch, it represents a modern synthesis of rugged durability, exceptional performance, and practical design.

Crafted entirely from marine-grade DNV 5083 aluminum, the hull boasts a substantial 6mm bottom plate, ensuring exceptional impact resistance and longevity in demanding coastal environments. This material choice eliminates the worries of fiberglass osmosis or wood rot, offering a virtually maintenance-free and robust structure backed by a 5-year warranty.

The catamaran twin-hull design is the core of its success. It delivers an unmatched combination of high-speed capability (35-40 knots) and remarkable stability. This makes the Catamaran 88 both an exhilarating ride to distant fishing grounds and a steady, secure platform for fishing at rest—dramatically reducing the uncomfortable rolling associated with monohulls.

With a generous 400-liter dual fuel tank capacity, it offers excellent range for full-day or multi-day inshore adventures. The vessel is rated for up to 8 passengers, providing ample space for crew and gear within its 8-meter length and 2.46-meter beam.

Every aspect of the Catamaran 88 is customizable for serious fishing. The layout can be optimized for ample cooler space, live bait systems, dedicated rod storage, and a clear, functional cockpit. The helm is designed for modern electronics, ensuring precise navigation and fish-finding.

Ideal for sport fishing, day charters, or as a fast family cruiser, the Ubi Catamaran 88 is a turnkey solution for those who value strength, speed, stability, and smart design in a single, corrosion-resistant aluminum package.
