Description

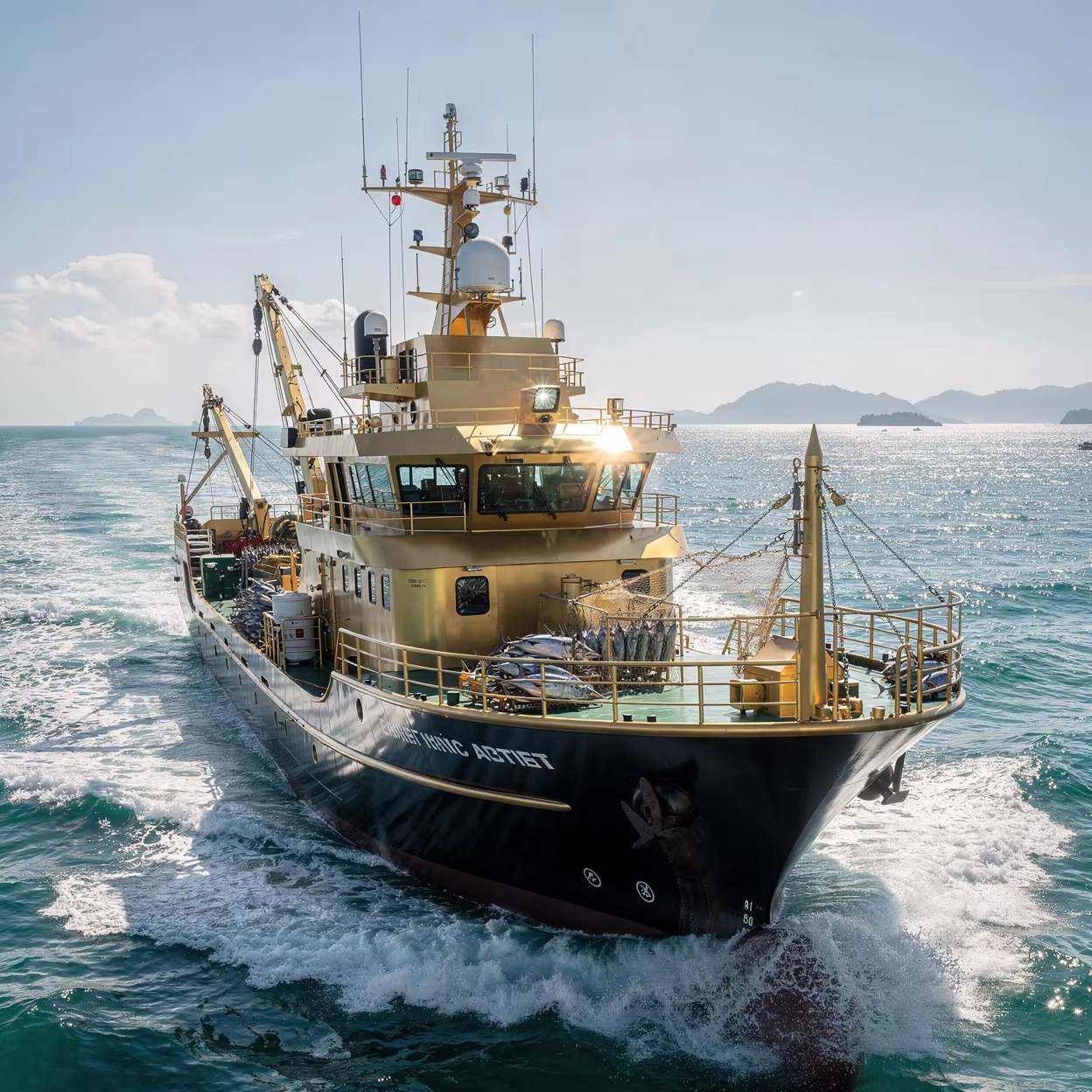

* Vessel Type: Steel Hull Tuna Longliner / Purse Seiner
* Classification: Built to Thai Marine Standards, suitable for international fishing operations.
* Overall Length (LOA): 30.00 meters
* Length Waterline (LWL): 27.50 meters
* Beam (Moulded): 7.50 meters
* Depth (Moulded): 3.50 meters
* Estimated Draft: 3.00 meters
* Gross Tonnage: ~150 GT
* Fuel Capacity: ~45,000 Liters
* Fresh Water Capacity: ~8,000 Liters
* Fish Hold Capacity: ~70 cubic meters (approx. 35-40 tons)
* Range: >2,500 Nautical Miles
* Crew Capacity: 12-15 Persons

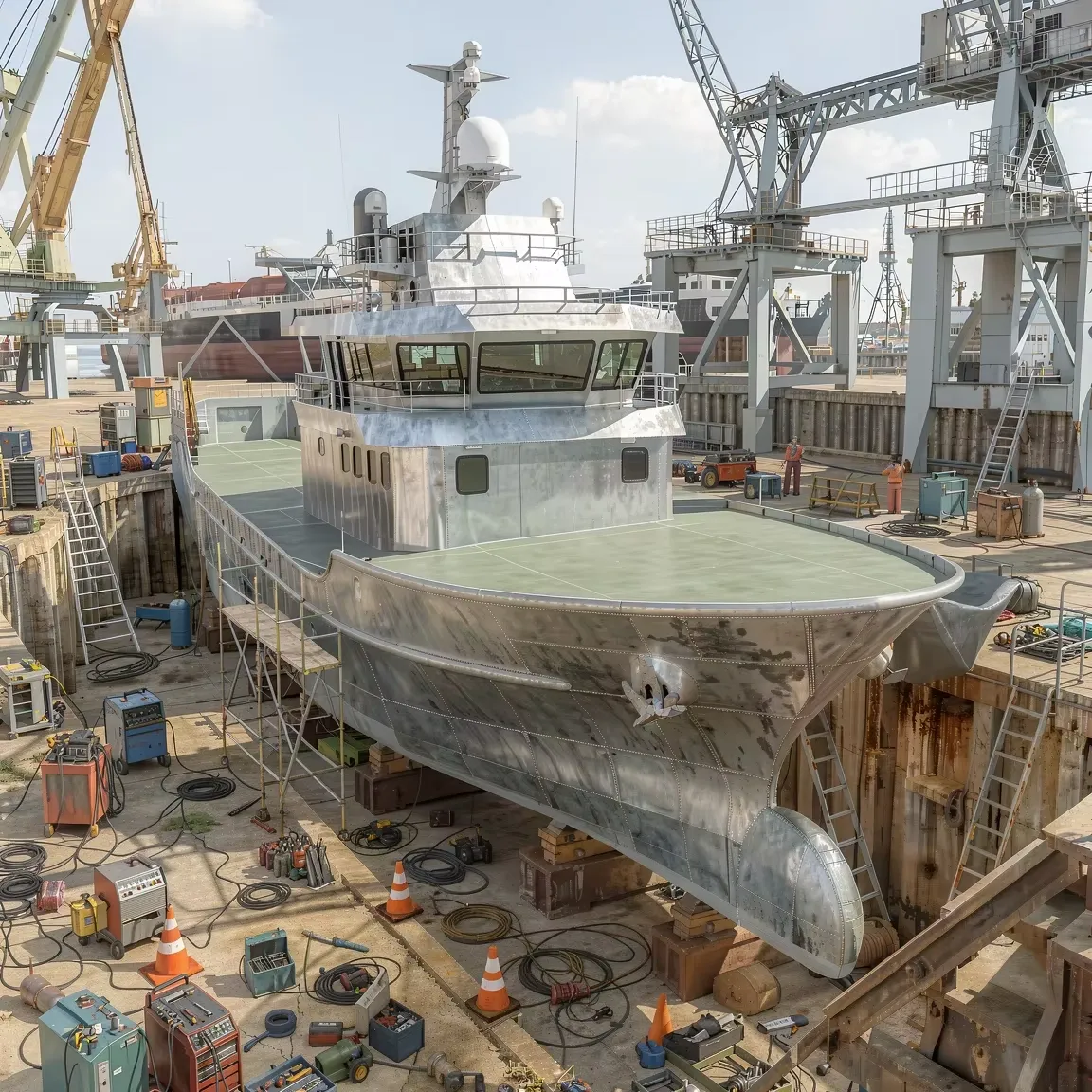

3.1 Hull & Superstructure:
* Hull Material: Marine Grade Steel (AH36)
* Superstructure: Marine Grade Aluminum
* Framing: Transverse framing system
* Coating: High-performance epoxy anticorrosive and antifouling paint system.
3.2 Propulsion System:
* Main Engine: One (1) Cummins / Mitsubishi / CAT Diesel Engine, approx. 1,200 HP @ 1800 RPM.
* Gearbox: Twin Disc or equivalent, with PTO.
* Propeller: 4-Blade NiBrAl Fixed Pitch Propeller.
* Steering System: Hydraulic telemotor system with twin rudders.
3.3 Auxiliary Systems:
* Generators: 2 x Diesel Generator Sets (80 kVA + 50 kVA).
* Electrical: 240V/415V 50Hz, 24V DC system.
* Bilge & Ballast: Automated bilge pumping system.
3.4 Fish Hold & Preservation:
* Construction: Polyurethane foam insulation (150mm+).
* Refrigeration: RSW (Refrigerated Sea Water) System capable of chilling to -2°C.
* Lining: Food-grade stainless steel or GRP.

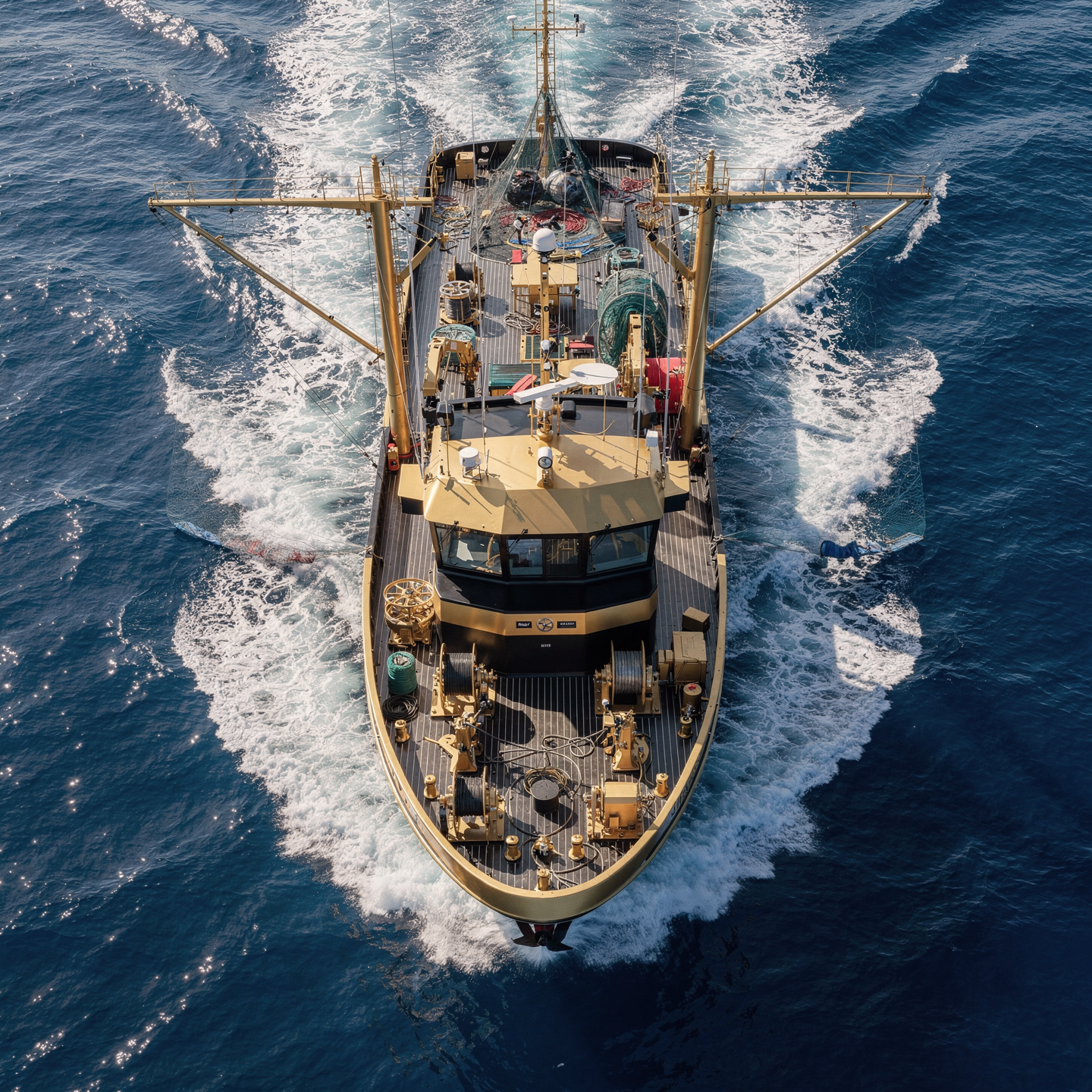

3.5 Deck Machinery (Hydraulic):
* Purse Winch (or Longline Hauler)
* Power Block (for purse seining)
* Net Stacker / Roller
* Anchor Windlass & Mooring Winches

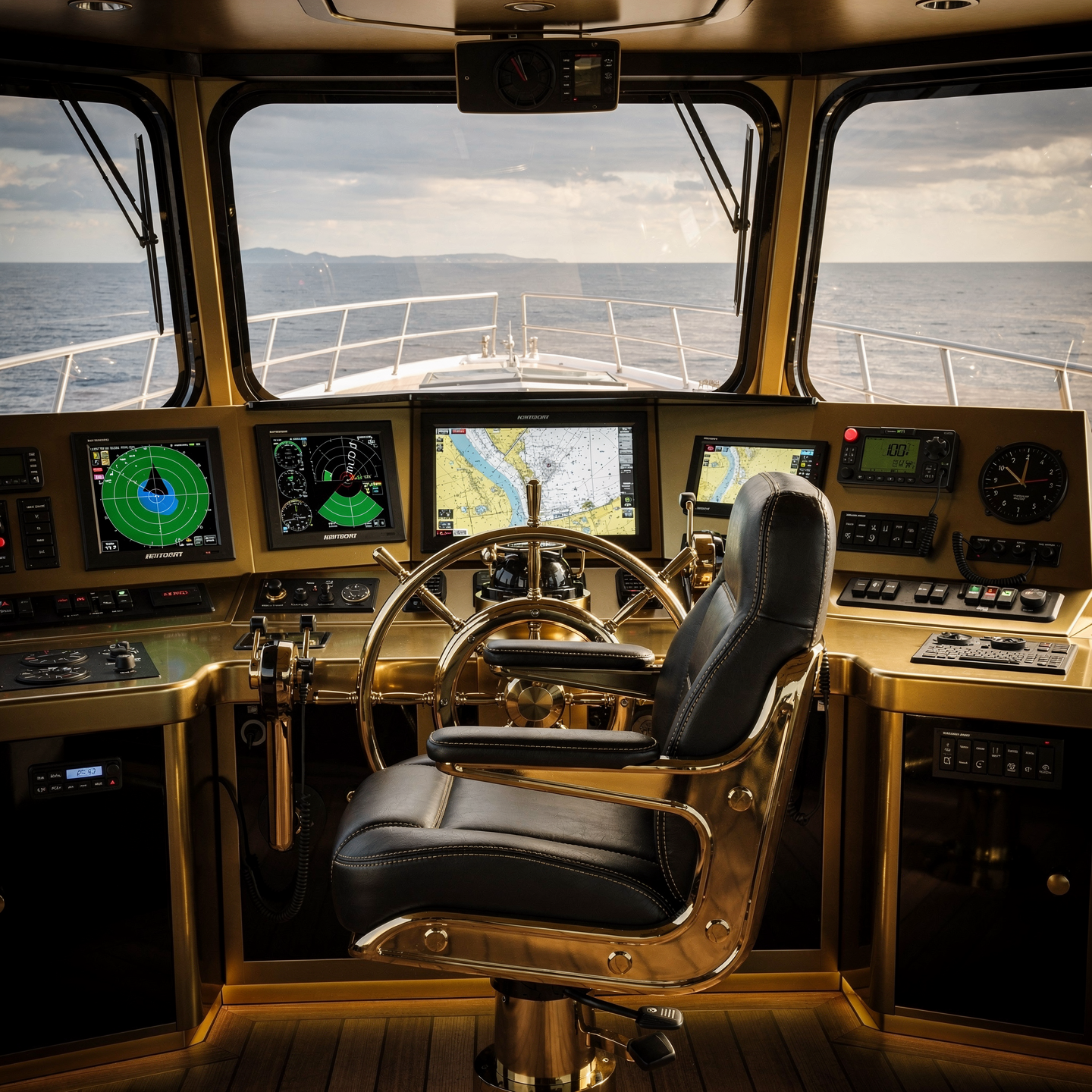

3.6 Navigation & Communication:
* Radar: Furuno or Simrad, X-Band & S-Band.
* GPS Plotter: Multi-function Display with electronic charts.
* Echosounder: Dual-frequency fish finder.
* Radio: SSB & VHF Radio with DSC.
* SatCom: Inmarsat Fleet One or equivalent.
* AIS: Class B Transponder
