Description
PRODUCT DESCRIPTION
| Item | Description |
|---|---|
| Model | UBI 1880 Catamaran Aluminum Ferry |
| Intended Use | City Ferry Service, Large Scale Island Transportation |
| Hull Material | Marine-Grade Aluminum 5083-H116 |
| Superstructure | Aluminum & Fiberglass Composite |
| Propulsion | Inboard Diesel Engine with Water Jets |
| Classification | Designed to comply with international standards for vessels up to 100 passengers |
2. TECHNICAL SPECIFICATIONS
| Category | Details |
|---|---|
| Length Overall (LOA) | 18.80 meters |
| Beam Overall | 6.80 meters |
| Draft (Fully Laden) | 0.95 meters |
| Dry Weight (Approx.) | 16,800 kg |
| Passenger Capacity | 100 Persons + 5 Crew |
| Fuel Capacity | 3,000 Liters |
| Fresh Water Capacity | 600 Liters |
| Max Speed (Fully Laden) | 25-28 knots |
| Cruising Speed | 22-24 knots |
| Propulsion System | 2 x Yanmar 6LY440-ET Diesel Engines (440 HP each) with Hamilton HJ322 water jets |
| Range | Approximately 300 nautical miles |
3. STANDARD EQUIPMENT & FEATURES
- Hull & Deck: Heavy-duty commercial anti-skid deck coating, stainless steel cleats (12x), heavy-duty fenders (10x), bow access platform, full perimeter safety rails, six boarding gates (3 port, 3 starboard)
- Passenger Areas: Two separate air-conditioned cabins with commercial-grade seating for 100 passengers, standing headroom throughout, overhead luggage racks, multiple standing areas, two lavatories
- Navigation & Electronics: Double helm stations, VHF radios, 2x 19″ multi-function displays, radar, autopilot, AIS, CCTV system with 12 cameras, passenger counting system
- Safety Equipment: 110 x Adult Life Jackets, 10 x Fire Extinguishers, two emergency life rafts (50-person each), comprehensive first aid station, automatic fire suppression system, emergency lighting, bilge alarm system
- Comfort Systems: Central marine AC system, PA system with microphone and zone control, LED lighting throughout, USB charging stations, information display screens, wheelchair accessible area
4. FLOOR PLAN & IMAGES
(Note: This is a descriptive representation. Detailed CAD drawings and high-resolution images would be provided upon formal inquiry.)
Deck Layout:
- Main Deck: Forward cabin (35 seats), main cabin (55 seats), standing area for 10 passengers, two lavatories, beverage service counter, six boarding gates
- Upper Deck: Enclosed wheelhouse with 360-degree visibility, crew rest area, additional storage
- Aft Area: Engine room with sound insulation, storage compartments, emergency equipment storage
- Accessibility: Wheelchair ramp, dedicated wheelchair area, priority seating sections
Visual Representation:

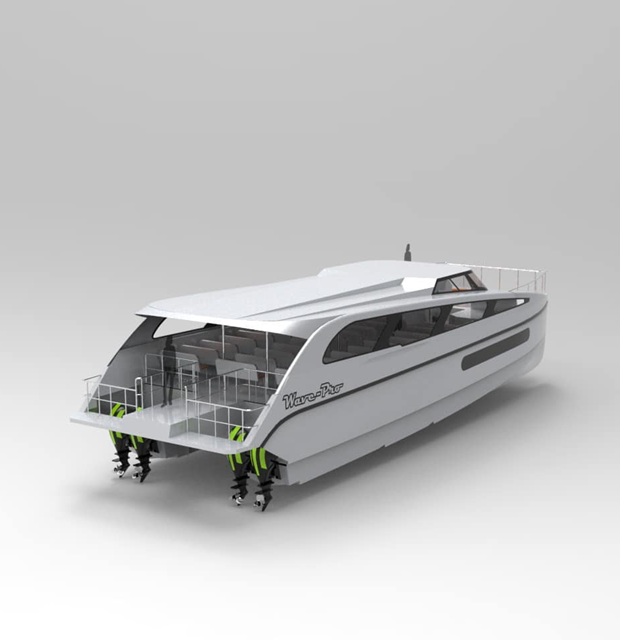

- Outboard Profile: Substantial, professional city ferry design with multiple wide doors, large viewing windows, and robust construction for high-frequency service
- Inboard View: Spacious, functional interior with optimized passenger flow, durable easy-clean surfaces, and efficient seating arrangement for rapid boarding/alighting
