Description
1.0 Vessel Summary & Compliance

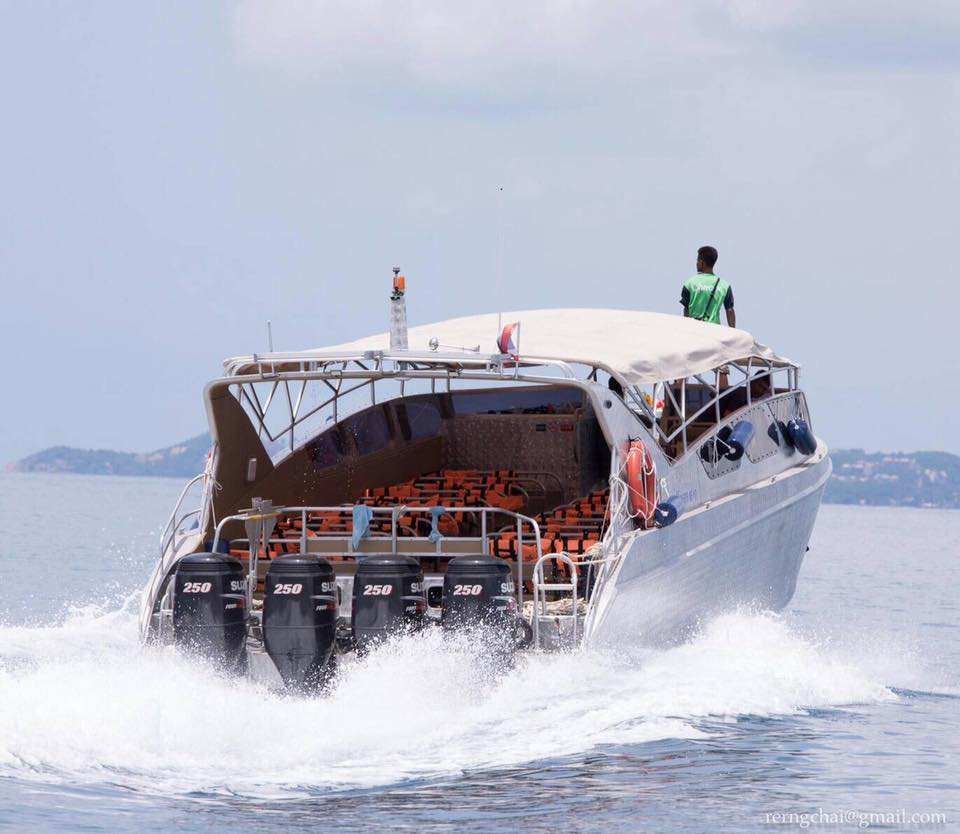

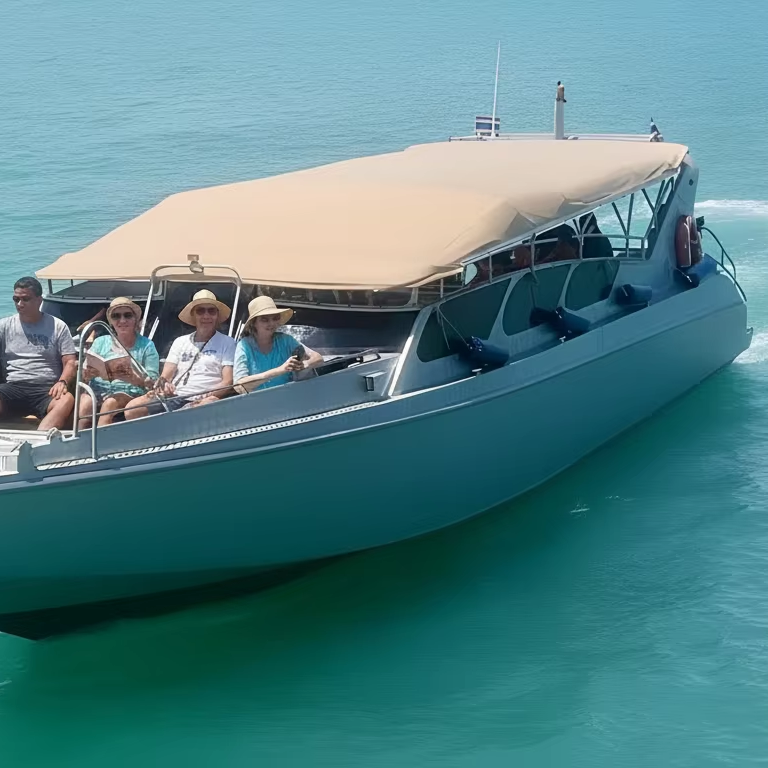

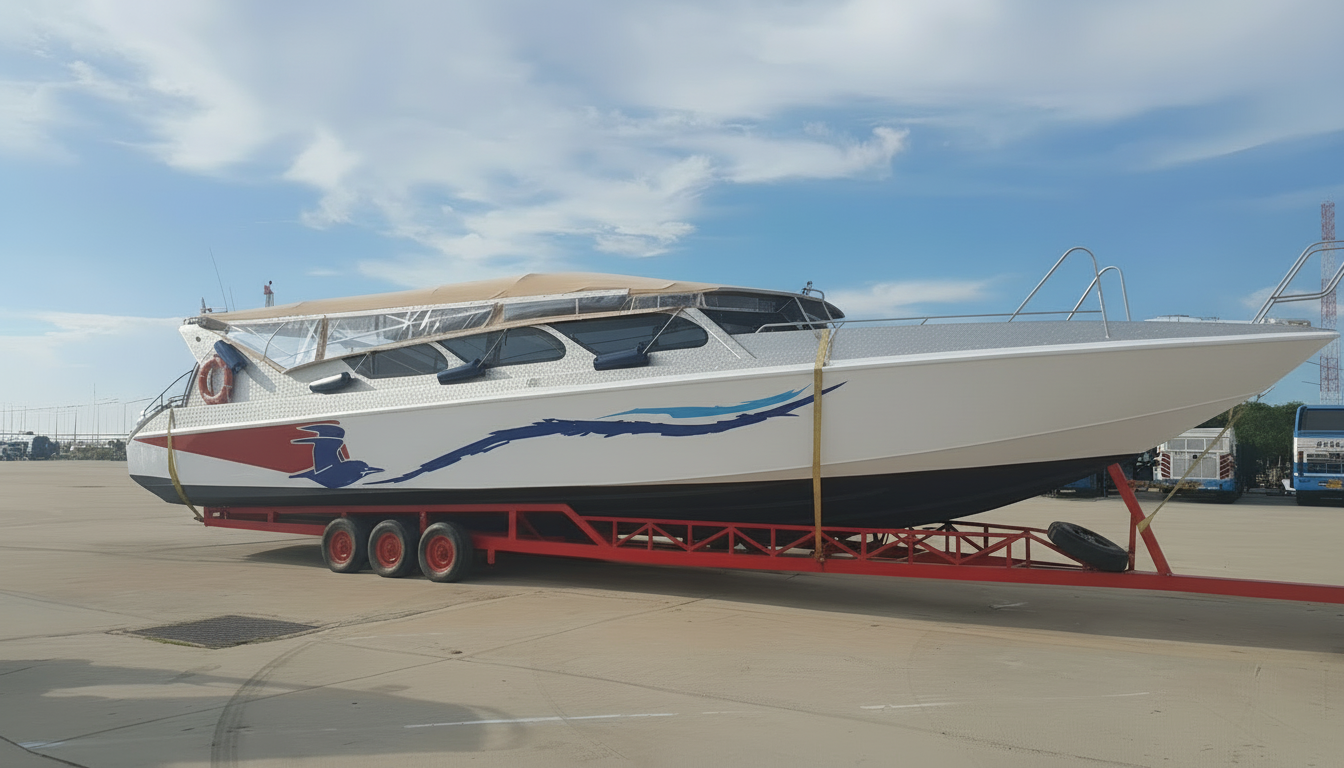

This quotation is for the construction of one (1) UBI 1850 high-speed aluminum passenger catamaran, built to the specifications provided.
- Design & Construction Standard: The vessel will be constructed in accordance with the supplied principle particulars and ISO standards. We note your reference to ISO Certificate: ONE TRIPLE ONE 201, which we interpret as a commitment to build to high-quality management and construction standards (ISO 9001, etc.). For commercial operation, the vessel must be certified by a recognized marine authority or classification society for the intended area of operation.
- Recommended Certification Path: For a 50-passenger commercial ferry, we strongly recommend engaging a Notified Body (e.g., RINA, DNV, or Bureau Veritas) for plan approval and survey during construction. This will ensure compliance with international safety codes for high-speed craft (such as the IMO HSC Code or regional equivalents) and is essential for insurance and licensing.
2.0 Technical Specifications
| Category | Specification as Provided | Notes / Clarification | |
|---|---|---|---|

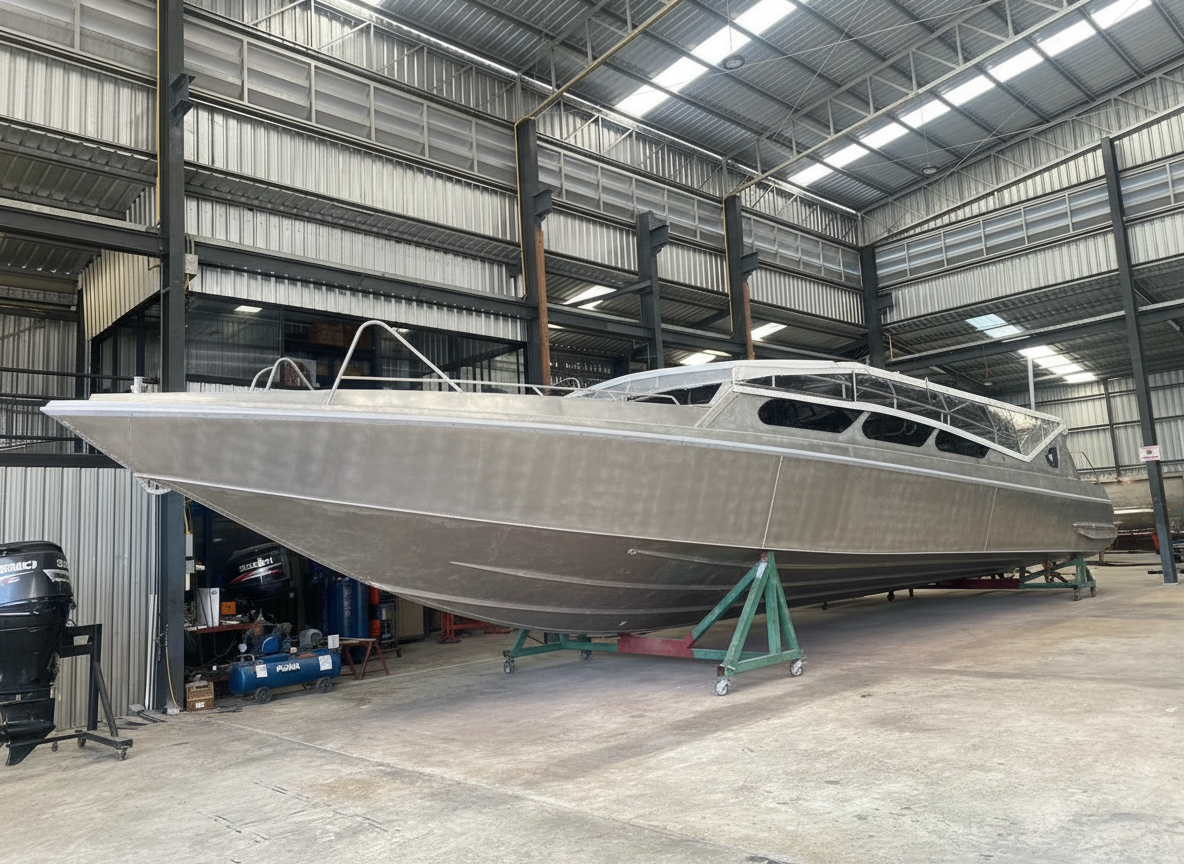

| Hull & Structure | LOA: 18.35m | Material: Marine-grade Aluminum 5083 H116. Hull constructed per specified plate thickness (8mm bottom, 5mm side). Includes unsinkable system with 7 airtight compartments. | |
| Beam: 4.02m | |||
| Draft: 0.56m | |||
| Propulsion | Engines: 4 x Outboard Engines, 300 HP each. | Supply and installation of four (4) 300HP outboard engines (brand to be specified, e.g., Yamaha, Suzuki). Includes all rigging, controls, and steering systems. | |
| Performance | Design Speed: 45+ Knots | Speed estimate is based on the installed power and hull form under specific conditions. | |
| Capacity | Passengers: 50 persons | Layout to include 50 fixed seats within the cabin. | |
| Crew: + 2-3 crew seats | |||
| Tankage | Fuel: 1350 Litres | Integrated tank system as per design. | |
| Water: 500 Litres | |||
| Ice/Hold: 2×200 Litres | |||
| Holding Tank: 90 Litres | |||
| Superstructure & Deck | Aluminum extrusion 6061 T6 & Chequer Plate 5052 H32. Includes balcony/walk-around area as specified. | Construction of cabin, helm station, and external decks. | |
| Systems | Electrical: 24V/220V system with 2 x 90W solar panels. Basic navigation lights, bilge pumps, etc. | Base level systems. A full navigation/communication electronics package is an optional extra. | |
| Project Management & Certification Prep | Includes basic engineering, project management, and preparation of documentation for class survey. | Excludes fees for the external Classification Society/Nominated Body surveyor. | |
| ESTIMATED BASE PRICE (FOB Bangkok) |
3.0 Key Clarifications & Exclusions
- Engines: The price assumes standard 300HP outboard models. Final cost will depend on the selected brand and model (e.g., Yamaha V6 300HP, Suzuki DF300AP).
- Electronics & Navigation: The base price includes only essential systems (wiring, switches, lights). A complete package for commercial operation (Radar, GPS/Plotter, VHF, AIS, Sounder) is excluded and must be budgeted separately.
- Interior Finish: The price includes fixed seating for 50 passengers. Higher-grade upholstery, cabin headlining, flooring, and a finished toilet compartment would be an upgrade.
- Certification & Survey Fees: All fees for the external Classification Society (e.g., DNV, RINA) or flag state surveyor for plan review, construction inspection, and final certification are not included. This is a critical and required cost for commercial operation.
- Shipping, Insurance, & Delivery: Excluded. Cost depends on destination port.
