Description
1. General Specifications & Purpose
-
Vessel Type: High-Speed, Heavy-Duty Commercial Fishing Platform / Patrol Vessel
- Hull Type: Deep-V Monohull with Hard Chine
- Primary Mission: Designed for high-speed transit to distant fishing grounds (offshore/longline), rapid deployment, and stable operation in demanding sea conditions up to Sea State 4. Suited for dual-use (fisheries patrol, research support).
- Key Advantage: Exceptional power-to-weight ratio and speed enable faster market delivery and extended operational range.
2. Principal Dimensions
| Item | Specification |
|---|---|
| Length Overall (LOA) | 18.00 meters |
| Length Waterline (LWL) | 15.30 meters |
| Beam (Molded) | 4.68 meters |
| Depth (Molded) | 1.30 meters |
| Design Draft (Full Load) | ~1.10 meters |
| Gross Tonnage | Approx. 45 GT (Estimated) |
3. Hull & Construction
- Material: Marine-Grade Aluminum Alloy 5083-H321 / 5086. Selected for its superior strength-to-weight ratio, corrosion resistance in saltwater, and weldability.
- Construction Method: Longitudinal and transverse frame stiffening system. Fully welded construction with ISO 9001 certified procedures.
- Structural Design: Reinforced collision bulkhead forward. Keel and chine are heavily reinforced to handle slamming in high-speed, rough-water operations. Watertight compartments for buoyancy and safety.
- Paint System: High-performance epoxy anticorrosive primer, followed by polyurethane topcoat. Hull bottom coated with hard-type anti-fouling paint.
4. Propulsion & Performance
- Propulsion System: Quadruple Inboard Diesel Configuration.
- Engines: 4 x Heavy-Duty Marine Diesel Engines, each 350 BHP @ 2500 RPM (e.g., Caterpillar C7.1, Yanmar 6LY440, or equivalent).
- Gearboxes: 4 x Marine Gear with suitable reduction ratio (e.g., 2.5:1).
- Propellers: 4 x Four-Blade NiBrAl Bronze Propellers, fixed pitch, optimized for thrust and efficiency.
- Steering: Hydraulic steering system with dual stations (wheelhouse & flybridge).
- Performance: Maximum Speed: 45 knots (light load, calm seas). Cruising Speed: 32-35 knots (fully loaded, operational). Range: Approximately 400-500 nautical miles at cruising speed, dependent on tankage.
5. Capacities
| Item | Specification |
|---|---|
| Fuel Capacity | ~6,000 Liters in integral baffled tanks (port & starboard) |
| Fresh Water Capacity | ~800 Liters |
| Fish Hold Capacity | ~8 Cubic Meters (can be refrigerated or brine-frozen) |
| Deck Cargo/Load Capacity | 10 Metric Tons (evenly distributed) |
| Light Ship Displacement | ~18.5 tons |
| Full Load Displacement | 28.5 tons (20.5t displacement + 10t load) |

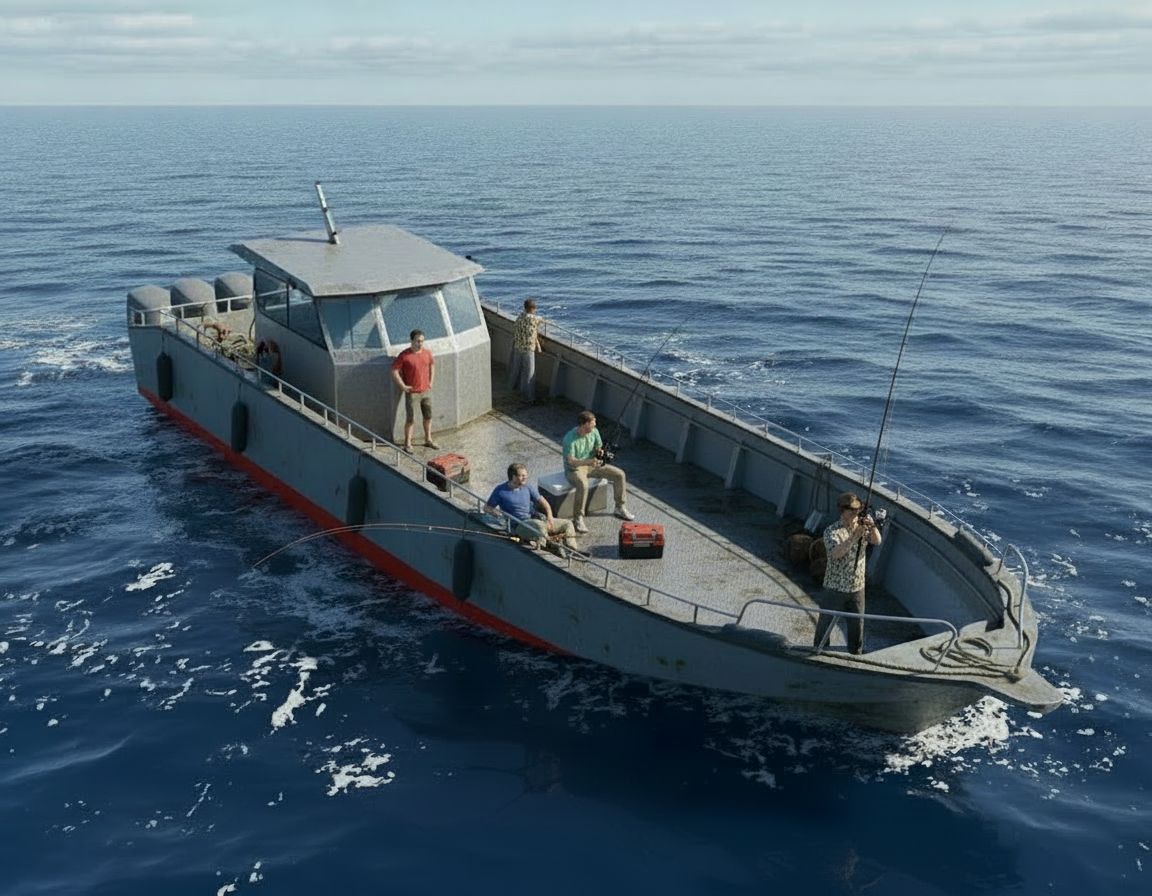

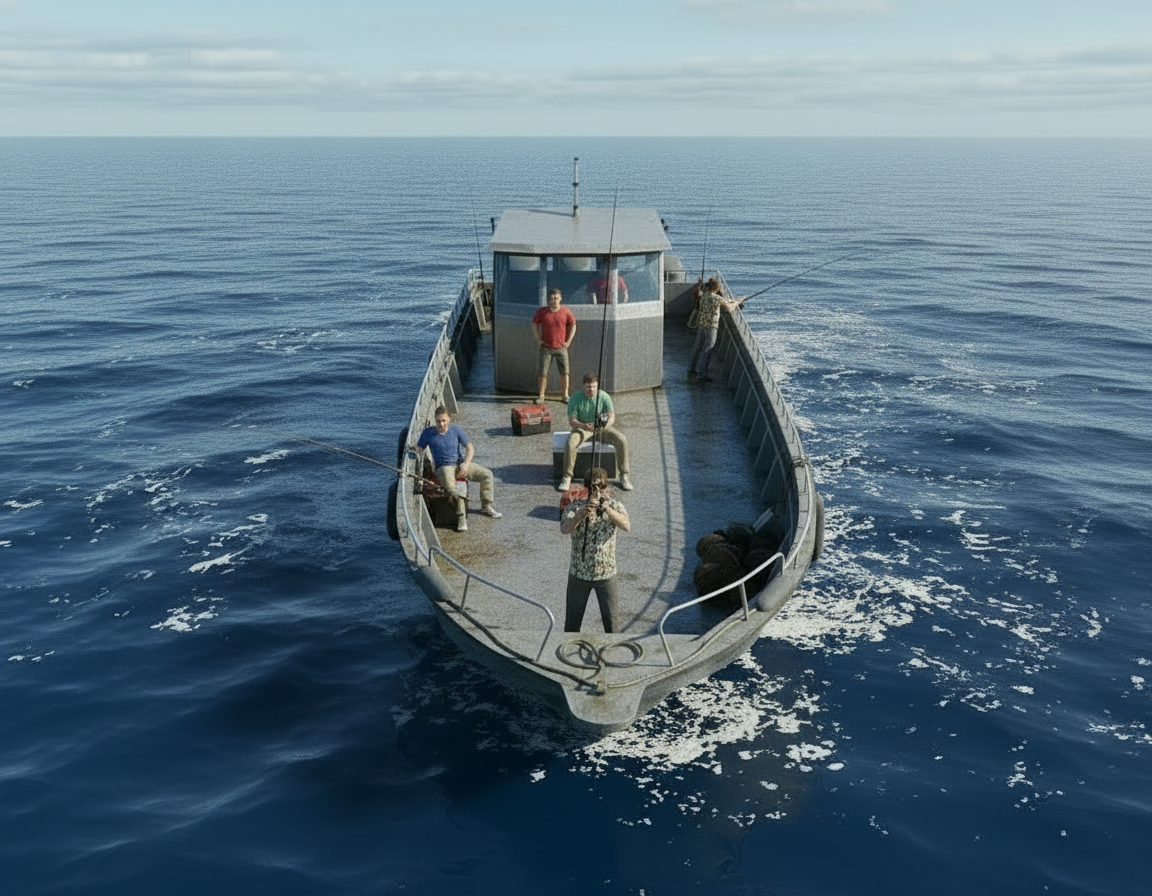

6. Deck Layout & Fishing Equipment
- Foredeck: Anchor winch, rope locker, and clear working space.
- Working Deck (Aft): Open, flush deck, reinforced for ~5 Ton/m² load.
- Hauling Station: Hydraulic capstan or line hauler.
- Fish Handling: Large sorting tray, gutting station with seawater washdown.
- Storage: Under-deck lockers for fishing gear, safety equipment.
- Railings: 1-meter high stainless steel safety railings around working deck.
7. Wheelhouse & Accommodation
- Crew Capacity: 10 Persons (6-8 fishing crew + captain/engineer).

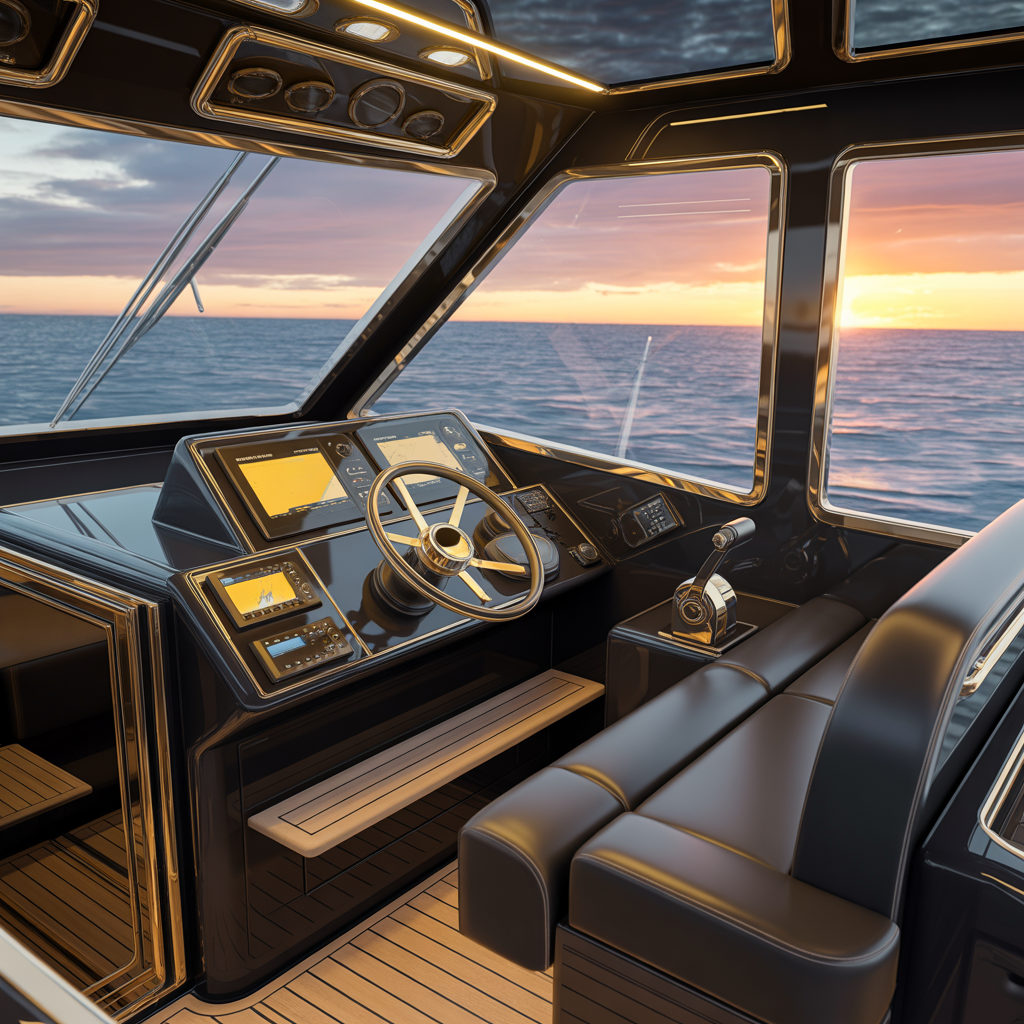

- Wheelhouse: Forward-positioned for 360° visibility. Contains:
- Main Control Station: Engine controls, navigation suite.
- Navigation Suite: GPS/Plotter, Radar, Fish Finder/Sonar, VHF, AIS, SSB Radio.
- Helm Seats: 2 x Suspension seats for captain and navigator.
- Accommodation: Located aft of wheelhouse. Includes:
- Galley: Basic stove, sink, refrigerator.
- Mess: Table and seating for crew.
- Bunks: 6-8 single-tier berths in a common cabin.
- Sanitary Facilities: 1-2 marine toilets (heads) with shower.
8. Electrical & Auxiliary Systems
- Generators: 1 x 20 kVA diesel generator (24V/110V/220V).
- Batteries: 24V DC system with heavy-duty banks for engine starting and ship’s service, managed by an automatic charger/inverter.
- Pumps: Automatic bilge pumping system (multiple zones), fuel transfer pump, freshwater pump, and high-pressure washdown pump.
9. Safety & Compliance
- Design Standard: Built to DNV-GL / Bureau Veritas rules for High-Speed Light Craft or equivalent local maritime authority standards.
- Safety Equipment: Sufficient SOLAS-approved life rafts for 10+ persons, life jackets, EPIRB, flares, fire extinguishing system in engine room, and first aid kits.
- Navigation Lights: Full COLREGs compliant LED lighting.
