Description
Vessel Specification: “Voyager 38” Aluminum Passenger Vessel
Vessel Type: Monohull Aluminum Passenger Boat
Primary Use: Protected water transit, tourist excursions, island ferry service, private charter.
Hull Material: Marine-Grade Aluminum (Welded Construction)
Classification: Designed to carry 30+1 passengers in sheltered waters.
1. Principal Dimensions & Weights
| Parameter | Value | Notes |
|---|---|---|
| Length Overall (LOA) | 11.80 m | ~38.7 ft |
| Length Waterline (LWL) | 10.60 m | Determines hull speed and efficiency. |
| Beam | 2.88 m | Provides a stable platform for passenger comfort. |
| Depth | 1.20 m | |
| Average Draft | 0.61 m | Very shallow draft – ideal for operating in rivers, harbors, and shallow coastal areas. |
| Lightweight (Approx.) | 4,900 kg | |
| Full Load Displacement | 8,500 kg | Includes passengers, fuel, and supplies. |
2. Performance & Propulsion
| Parameter | Value | Notes |
|---|---|---|
| Propulsion System | 2 x Yamaha F200BETX | 200 HP, 4-Stroke, Gasoline Outboard Engines. |
| Total Power | 400 HP | |
| Maximum Speed | 27 knots | (At light load, conditions dependent). |
| Cruising Speed | 22-25 knots | Optimal for passenger comfort and fuel efficiency. |
| Fuel Capacity | 650 Liters | Stainless Steel Tank. |
3. Passenger Capacity & Amenities
| Parameter | Value |
|---|---|
| Certified Capacity | 30 Passengers + 1 Crew |
| Seating | 30 x Soft Padded Seats |

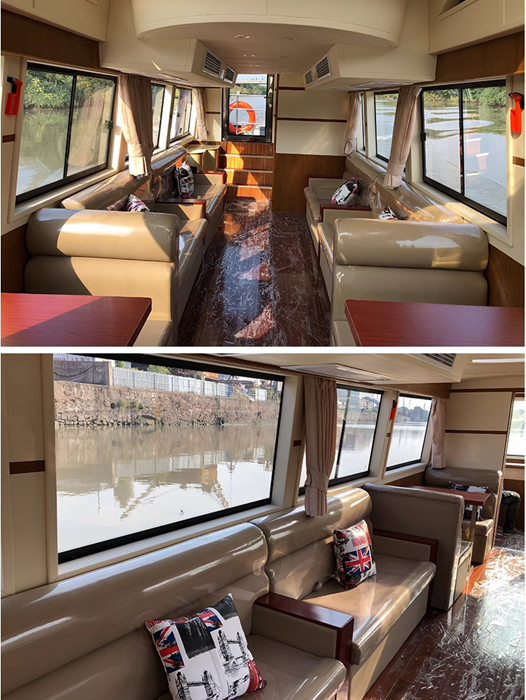

| Amenities | • Toilet and Wash Basin • Air Conditioning (Marine Type, 2400 BTU Cooling/Heating) • Interior Soft Leather Wall & Ceiling Finish • Wood Flooring • Curtains • Music System (6 Speakers) |
4. Standard Equipment & Systems
Navigation & Communication:
- GPS + Chartplotter (Garmin)
- VHF Radio
- Search Light (Remote Control, Imported)
- Horn
- Loudspeaker (100W)
- Wiper (1 Pair)
Deck & Safety:
- Anchor & Rope (25KG, 20m)
- Stainless Steel Handrails
- Drag Pole
- Escape Door
- Lighting Rod
Mechanical & Electrical:
- Hydraulic Steering System (Imported)
- Generator (5kW Marine Type)
- Bilge Pump (1 Unit)
- Fresh Water Tank & Pumping System (American Brand)
- Batteries (2 x 12V/150AH)
Safety Equipment (SOLAS Compliant):
- Life Jackets (33 Units, SOLAS Approved)
- Life Rings (2 Units, 75cm Diameter)
- Fire Extinguishers (2 x 5KG)
5. Packaging & Delivery
- Shipping: 1 unit per 40ft Flat Rack Container.
- Production Lead Time:
- 1 Boat: 60 Days
- 2 Boats: 80 Days
Summary of Key Characteristics
- Robust & Lightweight: Marine-grade aluminum construction offers an excellent strength-to-weight ratio, ensuring durability with high performance.
- Shallow Draft Operation: A draft of only 0.61m allows access to areas inaccessible to deeper-hulled vessels, opening unique route possibilities.
- Premium Propulsion: Twin Yamaha 200HP 4-stroke engines provide reliable, powerful, and relatively quiet operation with strong service support globally.
- High Passenger Comfort: Fully equipped with air conditioning, a toilet, a music system, and high-quality finishes, making it suitable for commercial and premium charter services.
- Turn-Key Package: The specification includes a comprehensive list of navigation, safety, and comfort equipment, making it ready for operation upon delivery.
