UBI 1020 Customized Aluminum Luxury Cruising Pontoon Yacht 10M 20 PAX Outboard Engine 200HP River & Fishing

Series Overview: Ultimate Flexibility in Pontoon Design
The UBI 1020 Series represents a revolutionary approach to pontoon yacht construction—a fully modular, customizable aluminum
platform available in eight standard sizes from 15 to 30 feet. Engineered for versatility, this series allows operators to select
the exact specifications for their needs while benefiting from standardized, cost-effective manufacturing and global shipping
logistics.

———————————————————————————————————————————-

Series Configuration Matrix
Two Primary Configurations

ModelTotal LengthBoat WidthLoad CapacityPassenger CapacityPrimary Use CaseUBI 1020-M (Mid-Size)7.98m (26.2 ft)2.56m (8.4 ft)900 kg
12+1 personsProtected waters, lakes, rivers, marina shuttleUBI 1020-L (Large)10.3m (33.8 ft)3.0m (9.8 ft)2100 kg12–20 persons
Commercial transport, party boats, guided tours

———————————————————————————————————————————-

Complete Size Portfolio (8 Standard Options)

Length (Feet)Length (Meters)Beam OptionsLoad Capacity RangePassenger CapacityContainers/Unit15 ft4.57m2.3m500–700 kg6–8 persons4
units / 40ft container17 ft5.18m2.3m/2.6m600–800 kg8–10 persons4 units / 40ft container19 ft5.79m2.3m/2.6m700–900 kg10–12 persons4
units / 40ft container21 ft6.40m2.3m/2.6m800–1000 kg12–14 persons4 units / 40ft container23 ft7.01m2.6m900–1100 kg14–16 persons3
units / 40ft container25 ft7.62m2.6m1000–1200 kg16–18 persons3 units / 40ft container27 ft8.23m2.6m1100–1300 kg18–20 persons2
units / 40ft container30 ft9.14m2.6m/3.0m1200–1500 kg20–25 persons2 units / 40ft container
Note: Custom lengths beyond 30 feet available upon request

———————————————————————————————————————————-

Core Technical Specifications
Construction & Materials
* Hull Material: 5083 Marine-Grade Aluminum Alloy

* Construction Method: Welded modular pontoons with reinforced cross-members

* Deck Material: Aluminum plating with optional synthetic teak or marine carpet

* Draft: 0.25–0.3m (10–12 inches) — Exceptionally shallow

* Buoyancy: Foam-filled or airtight chamber pontoons (specify)

Propulsion Options
* Power Source: Electric or Fuel (Diesel/Gasoline)

* Engine Configuration: Outboard (standard) or Inboard (custom)

* Power Range: 25–300 HP (scaled appropriately to vessel size)

* Electric Options: 5–50kW battery systems with solar charging capability

Performance Characteristics
* Maximum Speed: 15–35 knots (depending on power and load)

* Cruising Speed: 8–25 knots (optimal efficiency range)

* Stability: Exceptional due to twin-pontoon design

* Maneuverability: Excellent with multiple engine configurations

———————————————————————————————————————————-

Standard Features & Customization
Base Package Includes:
* Welded aluminum hull with reinforced structure

* Basic aluminum decking

* Safety rails (stainless steel or aluminum)

* Engine mounting bracket/transom

* Navigation lights

* Bilge pump system

* Fuel tank(s) or battery compartment

Popular Add-On Packages:
1. Leisure & Entertainment Package
* Wet bar with sink and refrigeration

* LED mood lighting system

* Premium sound system with Bluetooth

* Sun shade canopy or hardtop

* Swivel seating with upholstered cushions

* Swim platform with ladder

2. Commercial Transport Package
* Fixed rows of seating with aisle

* Ticket booth/operator station

* PA system

* Multiple boarding points

* Luggage storage areas

* Non-slip commercial decking

3. Eco-Tourism & Exploration Package
* Silent electric propulsion

* Glass-bottom viewing panels (optional)

* Guide station with microphone

* Binocular/telescope mounts

* Educational signage mounts

* Wildlife observation seating

4. Luxury Private Yacht Package
* Synthetic teak decking

* Leather upholstery

* Full entertainment center

* Mini-galley with appliances

* Enclosed head compartment

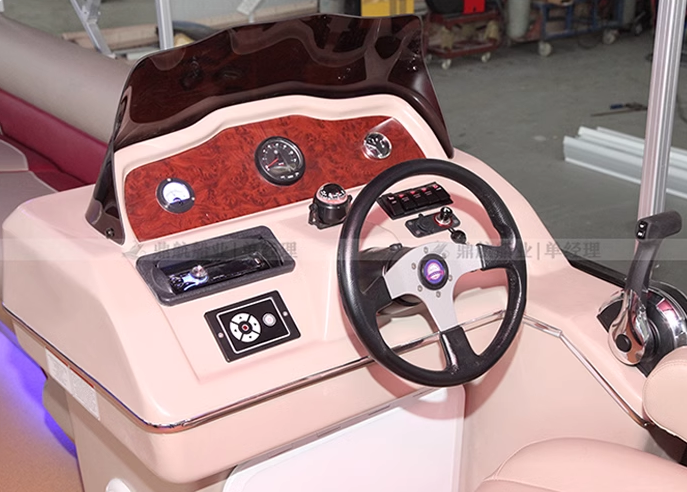

* Premium helm station with electronics

Finishing Options:
* Colors: Fully customizable powder coating (any RAL color)

* Decking: Aluminum, synthetic teak, marine carpet, or vinyl

* Upholstery: Wide range of marine-grade fabrics and colors

* Lighting: Custom LED configurations for ambiance and navigation

* Graphics: Custom wraps, decals, or painted graphics

———————————————————————————————————————————-

Global Delivery & Logistics
Container Optimization

Vessel SizeUnits per 40ft ContainerShipping Preparation15–21 ft4 unitsPartially assembled, minimal final assembly23–25 ft3 units
Modular sections, medium assembly required27–30 ft2 unitsMajor assembly required, professional installation recommended
Delivery Solutions:
1. Knock-Down Kits: For local assembly by authorized dealers

2. Semi-Assembled: Major components assembled, final fit-out locally

3. Turn-Key Delivery: Fully assembled and tested (regional limitations apply)

4. Technical Support: Assembly manuals, video guides, and remote support

———————————————————————————————————————————-

Applications & Market Use Cases
Commercial Operations:
* Water Taxi Services: 21–30 ft models ideal for passenger transport

* Party Boat Rentals: 25–30 ft models with entertainment packages

* Marina Shuttles: 15–19 ft models for protected water transport

* Fishing Platforms: 19–27 ft models with fishing chair mounts

* Eco-Tourism: Electric versions for silent wildlife observation

* Restaurant/Bar Boats: 27–30 ft models with full service facilities

Private & Recreational Use:
* Family Day Boats: 17–23 ft models with seating and sun protection

* Entertainment Vessels: 25–30 ft models for hosting and parties

* Fishing Platforms: 19–25 ft models with fishing amenities

* Tender/Support Vessels: 15–19 ft models for larger yachts

Specialized Applications:
* Dive Support: Gear transport and surface support

* Research Platforms: Stable base for water sampling and observation

* Event/Film Production: Camera platform and crew transport

* Safety/Patrol Vessels: For lakes, resorts, and protected areas

———————————————————————————————————————————-

Regulatory Compliance
Certification Options:
* CE Certification: Available for appropriate categories

* US Coast Guard: Can be built to USCG standards for passenger vessels

* Local National Standards: Configured to meet regional requirements

* Safety Equipment: Packages available to meet various regulatory frameworks

Stability & Safety:
* Inherent Stability: Pontoon design provides exceptional initial stability

* Buoyancy: Foam-filled or compartmentalized for damage resistance

* Load Calculations: Provided for each configuration

* Safety Rails: Height and spacing to meet international standards

———————————————————————————————————————————-

Why Choose the UBI 1020 Series?
Advantages Over Traditional Pontoons:
1. Modular Design: Mix and match components for perfect configuration

2. Aluminum Construction: Lighter, stronger, and more durable than fiberglass

3. Global Shipping Optimized: Cost-effective delivery worldwide

4. Endless Customization: From basic utility to luxury finishes

5. Shallow Draft Operation: Access areas other vessels cannot

6. Low Maintenance: Aluminum requires minimal upkeep

7. Resale Value: Higher than conventional pontoons due to durability

Economic Benefits for Operators:
* Lower Capital Cost: Competitive pricing through standardized manufacturing

* Reduced Operating Costs: Aluminum construction and efficient propulsion options

* Revenue Flexibility: Reconfigure for different seasonal uses

* Durability: Longer service life with fewer repairs

* Insurance Advantages: Aluminum construction often receives favorable rates

———————————————————————————————————————————-

Configuration & Ordering Process
Four Simple Steps:
1. Select Base Size: Choose from 8 standard lengths

2. Choose Configuration: Select from standard packages or custom design

3. Specify Details: Power, finishes, and special features

4. Arrange Delivery: Choose shipping method and local support

Custom Design Services:
For unique requirements beyond standard options, our engineering team can provide:
* Custom length pontoons (beyond 30 feet)

* Specialized deck layouts

* Unique propulsion systems (water jets, hybrid, etc.)

* Specialized equipment integration

* Regulatory compliance engineering

———————————————————————————————————————————-

Comparison: UBI 1020 vs. Traditional Options

FeatureUBI 1020 Aluminum PontoonFiberglass PontoonWood Deck PontoonWeightLighter (better performance)HeavierHeaviestDurability
Highest (no rot, minimal corrosion)Good (gelcoat maintenance)Low (rot, weathering)CustomizationMaximum (welded construction)
Moderate (mold limitations)High (carpentry)MaintenanceLowest (no painting required)Moderate (gelcoat repairs)Highest (continuous
upkeep)Lifecycle CostLowestModerateHighestEnvironmentalFully recyclableLimited recyclingVariable

———————————————————————————————————————————-

The UBI 1020 Series represents the future of pontoon design—combining the proven stability of pontoon platforms with the strength,
lightness, and customization potential of marine aluminum. Whether you need a simple shuttle boat or a luxury entertainment
platform, this scalable system provides the perfect solution with global delivery logistics and unparalleled customization
options.
Contact our customer service team to discuss your specific requirements, request detailed specifications for any size option, or
arrange a consultation with our design team for custom configurations. With eight standard sizes and endless customization
possibilities, we can configure the perfect pontoon solution for your unique application.
