Description
included Elements:

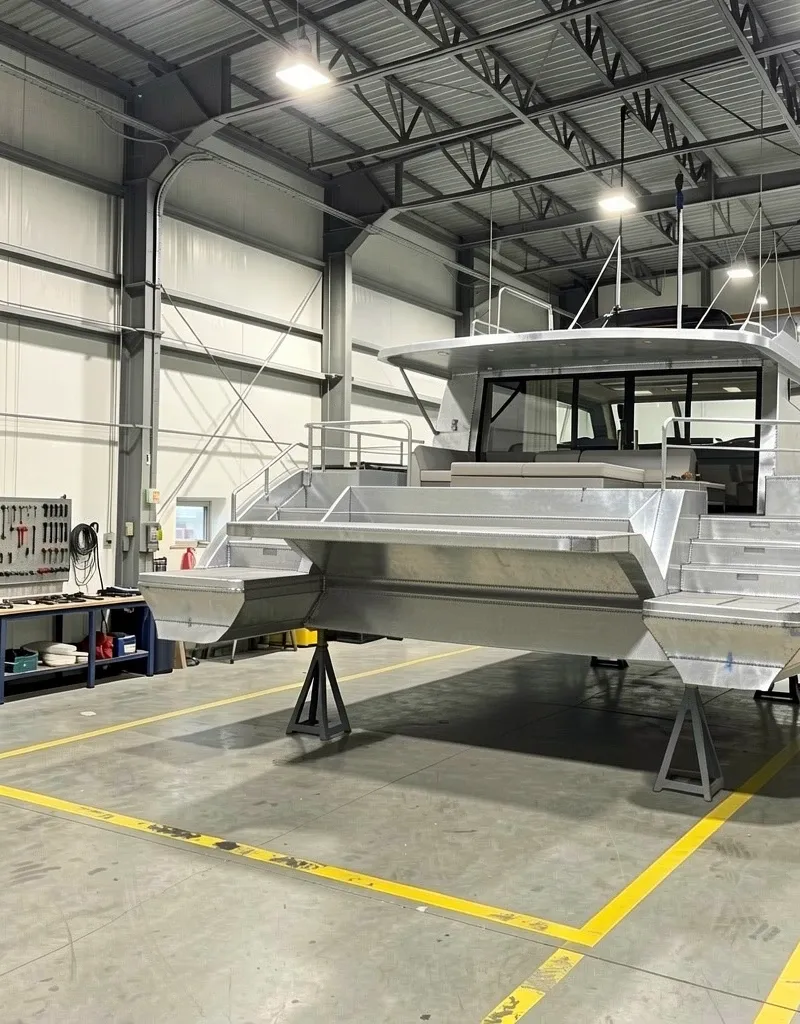

- Welded aluminium cabin structure integrated with hardtop
- Helm seating: Double seat with marine-grade vinyl upholstery
- Aft seating: Fixed bench seating with weather-resistant vinyl covering
- Non-slip deck surfaces throughout cabin and deck areas
- Basic cabin sole (floor) finish
- Window installations in cabin structure
This basic interior does not include luxury finishes, cabinetry, galley facilities, toilet compartment, air conditioning, or premium electronics. These items are available as optional upgrades detailed in the following sections. Standard Equipment Package:1.0 Vessel Summary & Base SpecificationsBased on your “Product Basic Information,” we propose the following core configuration:
-
- Product Name: UBI 1050 Sport Explorer Catamaran

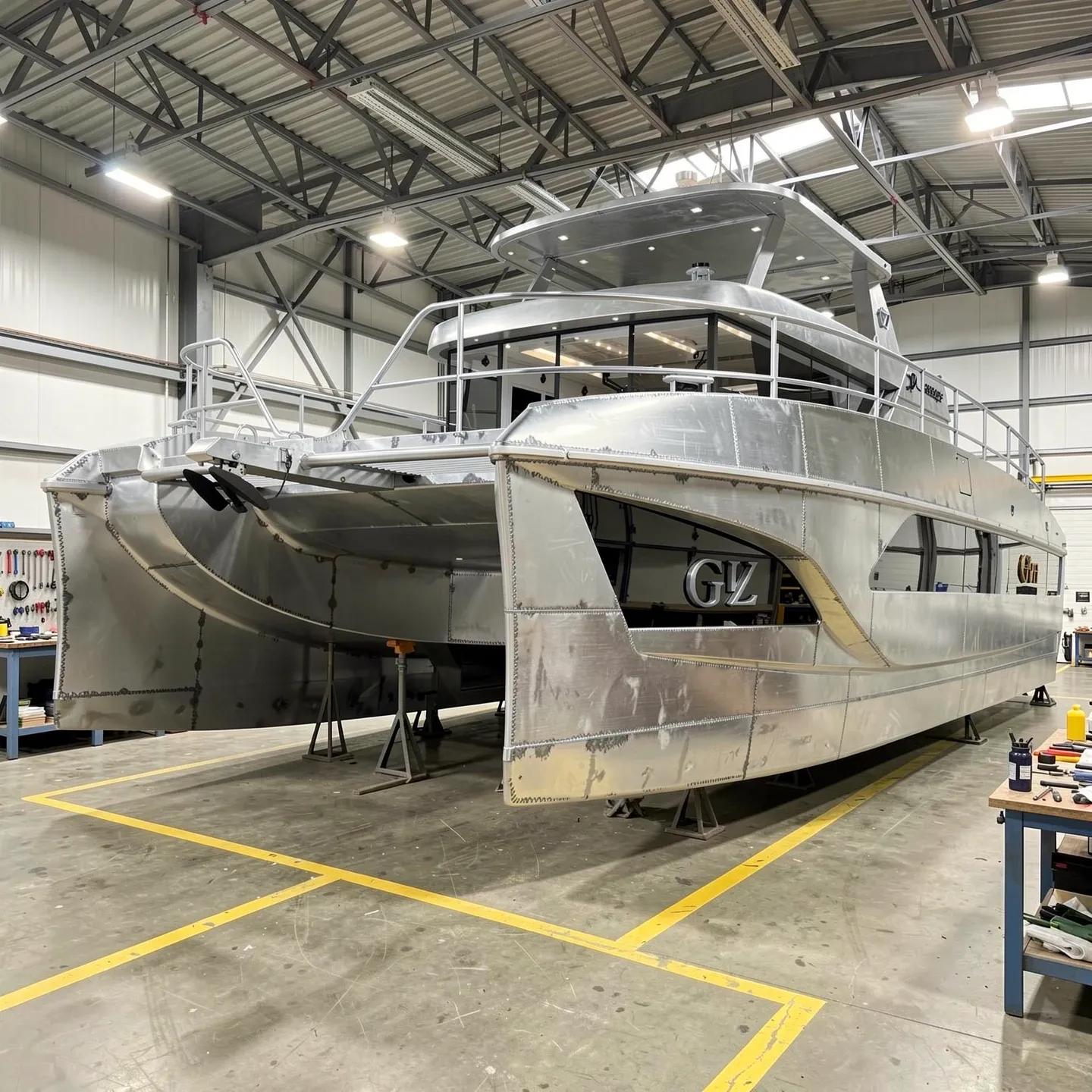

- Hull Material: Marine Grade Aluminum Alloy 5083-H321 (Welded Construction)

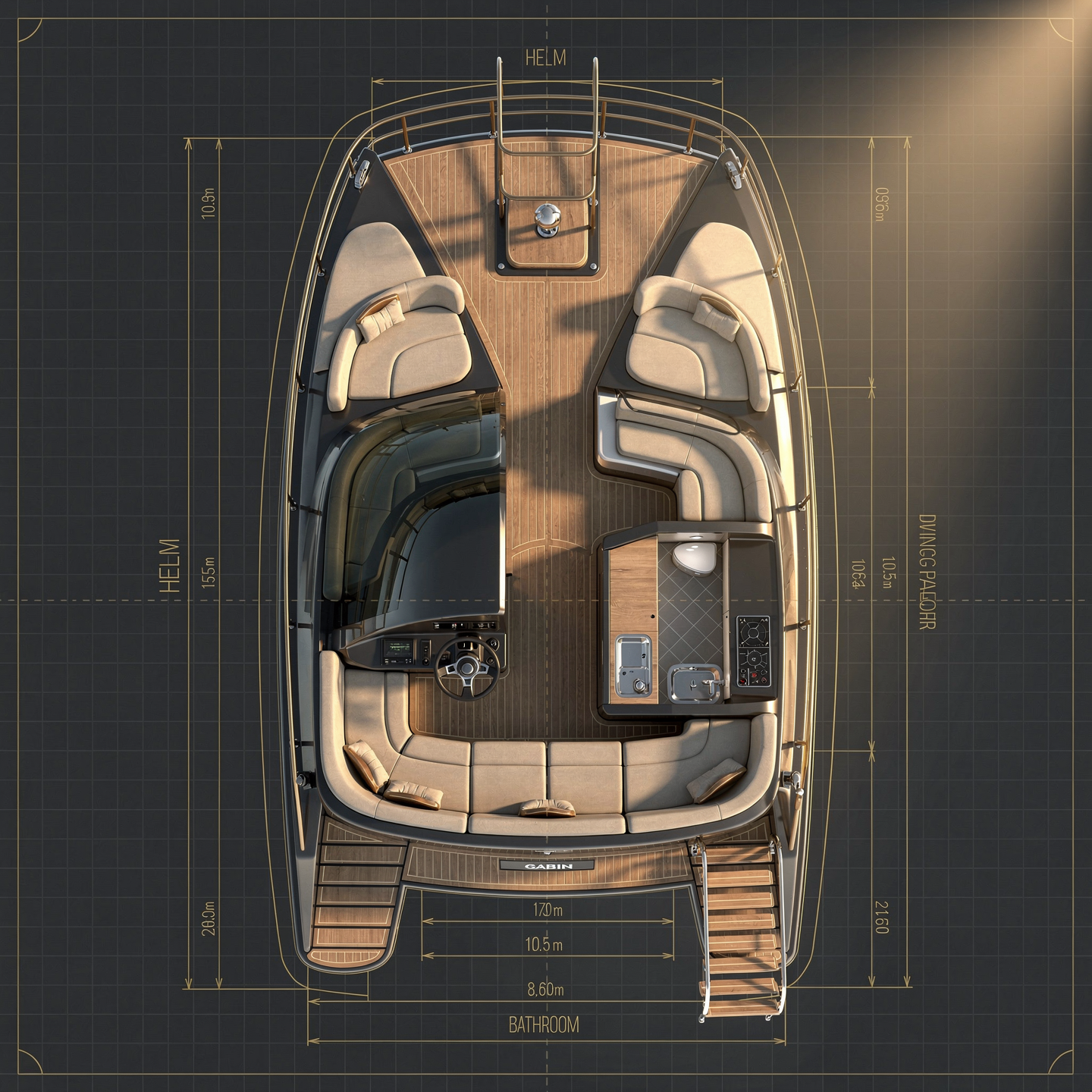

- Dimensions:
- Length Overall (LOA): 10.5 meters (34.4 ft)
- Hull Length: 10.0 meters (32.8 ft)
- Beam: 3.5 meters (11.5 ft)
- Draft (Approx.): 0.5 meters (1.6 ft)
- Capacity: Certified for 12 persons (crew + passengers)
- Propulsion & Performance:
- Engine Configuration: Twin Outboard Motors, total 700 HP (e.g., 2 x Yamaha F350 or equivalent Suzuki/V8 models).
- Estimated Speed: 30-35 knots (light load, calm conditions).
- Fuel System: Integrated fuel tanks, total capacity approx. 600 liters (158 US Gallons).
- Design Category: We propose design and construction to CE Category B (Offshore) and relevant ISO standards, making it suitable for your stated applications (sea, ocean). Compliance with other mentioned standards (USCG, Transport Canada) can be engineered as an option but will impact cost and timeline.
- Key Features: Spacious aft deck for diving/fishing, fold-down transom platforms/boarding ladders, fresh-water deck wash, insulated fish box/live well, hardtop with sunroof, helm station with double seat, and modular seating in the cabin.
2.0 Preliminary Pricing Breakdown (FOB Bangkok, Thailand)
The total estimated base price is USD 195,000.
| Cost Component | Specification Summary | |
|---|---|---|
| Hull & Structure | Welded aluminum 5083 catamaran hulls, decks, and superstructure. Includes all welded work, fairing, and primer. | |
| Propulsion Package | Twin Outboard Engines (700HP Total): Supply and installation of two (2) outboard engines (Yamaha/Suzuki 350HP), including rigging, controls, and instrumentation. Note: Price for Yamaha F350 V8 outboards is approximate. | |
| Standard Equipment & Fit-out | Basic electrical system (battery, switch panel, lights), hydraulic steering, bilge pumps, navigation lights, windscreen, powder-coated aluminum rails, deck fittings, freshwater deck wash, insulated fish box. | |
| Cabin & Interior Basics | Welded aluminum cabin structure, basic marine-grade vinyl upholstery for helm seats and aft benches, non-slip deck surfaces. | |
| Project Management & Yard Costs | Engineering, project management, quality control, and shipyard overhead. | |
| Preliminary Certification | Basic stability assessment and documentation for CE Category B self-certification pathway. |
3.0 Clarifications, Options, and Exclusions
Your specifications require clarification for an accurate final quote. Key items are listed below.
| Item | Clarification Needed / Option | |
|---|---|---|
| Certification | You listed all major global standards. The vessel can only be certified for one primary market. Which is the operational area? CE is standard. USCG, Transport Canada, or full class (ABS/DNV) require specific engineering and inspections, adding significant cost and time. | |
| Power Source | You listed both “Fuel: Petrol” and “Power Source: Battery Powered.” Please clarify: Is this a hybrid system request, or should we assume standard outboards with a battery bank for house loads? | |
| Interior & Amenities | The base price includes a spartan, functional interior. For a “Luxury” fit-out with upholstery, galley, head (toilet), AC, premium electronics (chartplotter, sounder, VHF), and enhanced finish, a separate package is required. | |
| Trailer | Not included in FOB price. Can be sourced separately. | |
| Shipping & Insurance | Excluded. Cost depends on destination port. |
