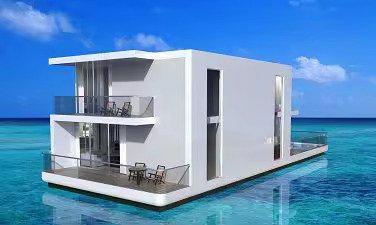

Customized Floating Luxury Villa With Swimming Pool

Description

20 X 8 square meter-type floating house with all interior finish,
equipment t and furniture as listed in the specs attached, without the engine system.

Standard Configuration & Specification
Technical data
LOA 20M
Beam 8m
Height of each deck 2.45m

Exterior SQM 105M

Interior SQM 165M

Full Load Displacement (Included Swimming Pool) 145T

Full load Draft 1.4m

Fuel Capacity (for generator) 2400L

Fresh water capacity 3000L

Black water capacity 1000L

Grey water capacity 2000L

Hull & Structure

FPR molded hull with gel coat finish White (DSM gel coat origin in

Holland)

Marine resin hull surface layers against osmosis 901-TP-L

PVC cored sandwich construction 3/4 inches light plywood

Multi-axial stitched fiberglass & unsaturated polyester

reinforce hull construction •

PVC watertight bulkhead structure FRP/PVC (Maricell origin in Italy)

Hull bottom antifouling paint • blue water origin in Singapore

Deck outfitting’s

click 300mm

Safety rails Stainless Steel

Deck drain Stainless Steel

electroplating anchor chain 50M/ 10mm

Recessed swim ladder at swim platform folding type

Signal light system DC24V

Exterior & interior furnishings

Panel Pattern available

Leather Linen/microfiber leather wall

upholstery

Sofa Integral custom-made sofa /

microfiber leather

Interior floor Composite wood floor

Exterior floor Non-slid gel coat floor

Main entrance door sliding glass door

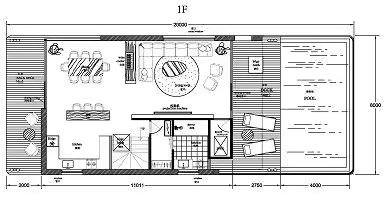

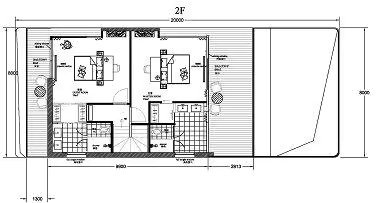

All interior furniture as per layout and design

Swimming Pool as per layout and design

Home appliances

Wall-hung LCD TV as per layout and design

Refrigerator 270L

Bar refrigerator CR-110L

Induction cooker AC220V

Range hood •

Microwave Oven •

Electric flash toilet •

Water heater 60L

Electrical system

Generator AC220V/ 15KW

Marine air conditioning set GREE origin in China

Battery for household appliances 2x200AH

Battery for generator 2x120AH

Battery charger DC12V/60A

Shore power system AC220V/50A

All pump systems included AC220V

VHF •

Bilge water alarm system DC12V

Lifesaving and firefighting

Life-saving and fire-fighting equipment as per CCS standard
